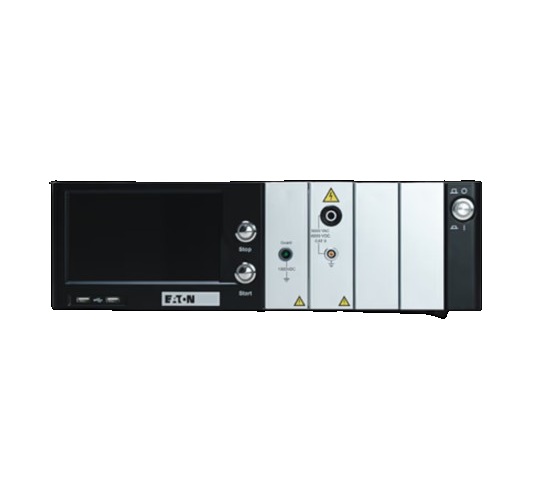

EATON 56-H Tester HI-POT

SEFELEC 1000-M TECHNICAL SPECIFICATIONS

General Specifications

Mains 100-240 VAC ±10 % 50 to 60 Hz / single phase

Mains protection Temporized double fuse T10AH 250V

Input power 100 VA max.

Temperature range Storage Operation

-10°C à +60°C 0°C à +45°C

Specified accuracy after 1/2 hour warm-up and RH<50 %

Altitude Up to 2 000 m

Relative humidity 80 % max. @ 31°C

Dimensions & weight Height Width Depth Weight

131 mm 440 mm 455 mmm approx. 15 kg

Measurement Voltage

Programmation 20 ... 1000 V DC by steps of 1 V

Voltage generator accuracy ±(1% + 1V) full range and with a current below 100 µA

Polarity positive pole grounded

Ripple voltage < 1% with a current < 100 μA

Dynamic stability For ΔVmains = ±10% measurement voltage variation < ±1%

Maximum current in measurement circuit 2 mA - 20% / +0%

Max D.U.T. capacitance < 100μF (discharge time < 10 s)

Discharge resistor 2,2 kΩ

Resistance Measurement Range

(Utest / Umax generator) x 200GΩ standard version and (Utest / Umax generator) x 2TΩ with 2 TΩ option

Test voltage

Standard measurement range

Measurement range with 2 TΩ option

100V 250V 500 V 1000V

100 kΩ to 20 GΩ 250 kΩ to 50 GΩ 500 kΩ to 100 GΩ 1 MΩ to 200 GΩ

100 kΩ to 200 GΩ 250 kΩ to 500 GΩ 500 kΩ to 1 TΩ 1 MΩ to 2 TΩ

Measurement Accuracy

Display Resolution 1 999 digits, units in kΩ, MΩ, GΩ et TΩ

Accuracy

Standard version 200 GΩ

With 2 TΩ option and Utest ≤ 200 V DC

With 2 TΩ option and Utest > 200 V DC

% of reading, 1U = 1 digit

± (1,5 % + 1U)

± (2 % + 1U)

± (1 % x Utest / 100 + 1U)

Capacitance mode from 1,00 MΩ to 200 GΩ

Accuracy : normal mode ± 100 kΩ

Input Impedance : 10 MΩ ±1%

Measurement Threshold

Range 50 kΩ to 200 GΩ (or 2 TΩ )

Thresholds types 1 high and 1 low

Tests results depending on thresholds (examples) Low Limit (LL) R measured High Limit (HL)

PASS : R measured ≥ LL and HL desabled 10 MΩ 26,1 MΩ - - -

PASS : R measured ≤ HL and LL desabled - - - 98, 0 MΩ 100 MΩ

PASS : LL ≤ R measured ≤ HL 25 MΩ 63,2 MΩ 70 MΩ

FAIL : R measured ≥ HL 45 MΩ 110 MΩ 80 MΩ

Temporisation

PERMANENT mode The rise duration set is active. The output voltage rises to the setpoint. Test stops if there is a

fault or if pressing the red button on the front panel.

AUTO mode Test runs in 3 sequences : linear raise up to set voltage (Ramp Up), set output voltage remains

applied (Dwell), progressive descent to 0V (Fall)

Ramp Up - Dwell - Fall duration 0,1 à 9999,0 s by steps of 0,1 s

Accuracy +/- 20 msec
